Safety guard for excentrical press with double door and microswitch - type PP

Sku : 9PP1CM
Eccentric press guard with double door and safety micro-switch. Custom dimensions available on request.
Screen
1 382,40 € - 2 060,64 €
€1,382.40

Description

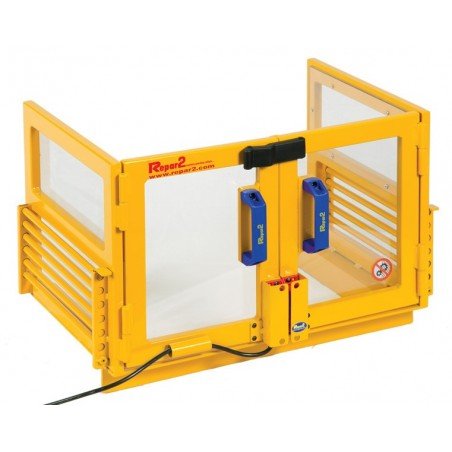

Screen for eccentric press to be mounted on the table. The screen is provided with 2 fixed parts, each equipped with a hinged door and filled with impact-resistant and scratch-free polycarbonate. The lateral guards are partly in polycarbonate and partly in metal with throughput possibilities for the material. The door panels that give access to the table of the eccentric press are equipped with a safety switch. There is a choice of 4 standard models, namely type PP1CM; PP2CM; PP3CM. o PP1CM with the dimensions: 700x500xh350mm o PP2CM with the dimensions 800x600xh700mm o PP3CM with the dimensions 1000x700xh750mm o PP4CM with the dimensions 1400x750x850mm Customization is also possible. This screen protects the operator against the danger of jamming and projected parts. Benefits : - Improved security - Lateral panels with material throughput options - Hinged doors for easy loading of molds or workpieces - Polycarbonate frontal and partly lateral Specifications: - Double door with maximum opening - Frontal length: 700 to 1400 mm - Choice of 4 models: o PP1CM with the dimensions: 700x500xh350mm o PP2CM with the dimensions 800x600xh700mm o PP3CM with the dimensions 1000x700xh750mm o PP4CM with the dimensions 1400x750x850mm - Customization possible - Safety switch - Device supplied with CE conformity certificate and an installation and usage sheet
