Miscellaneous

FVH

Sku : 9FVH1CM

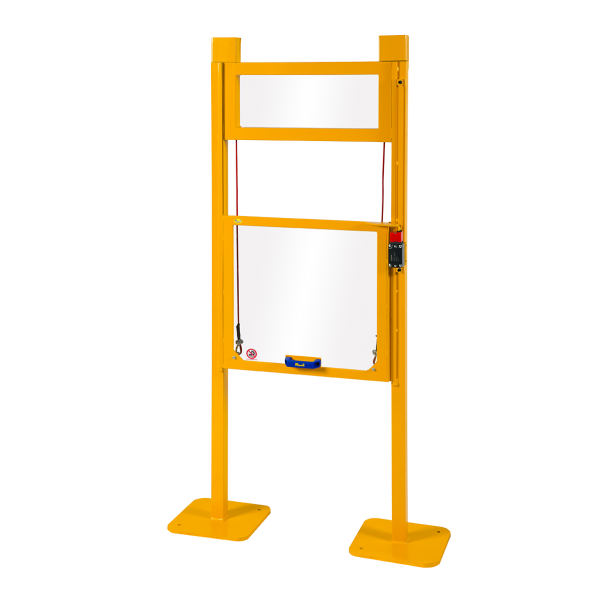

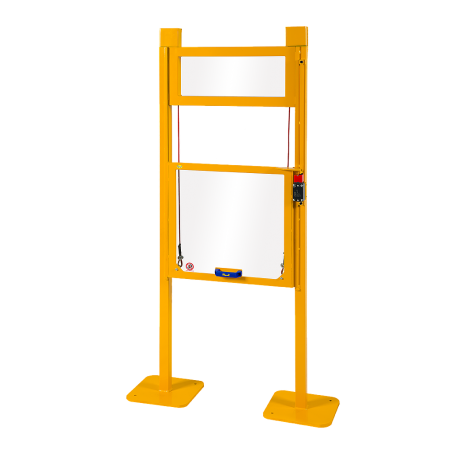

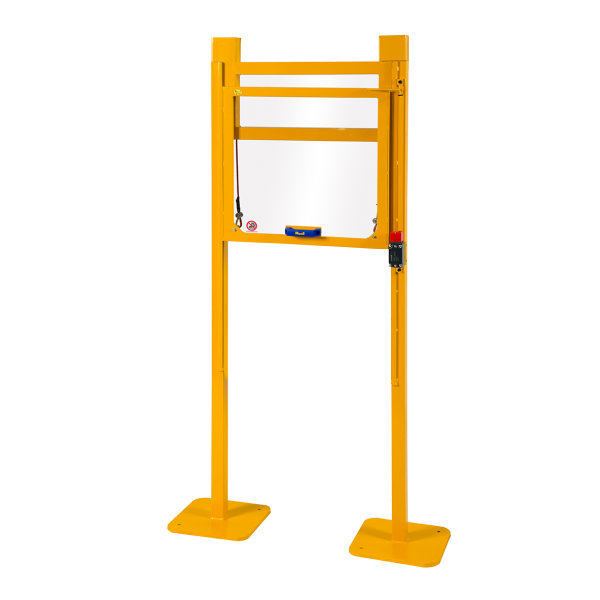

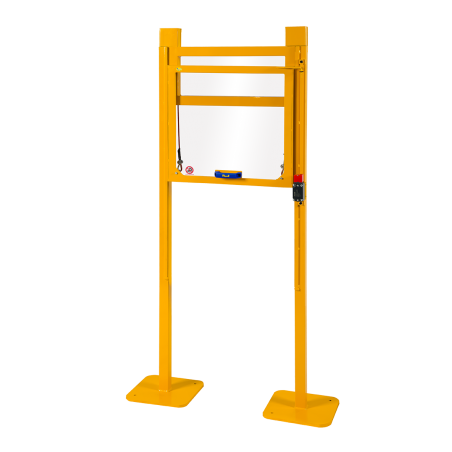

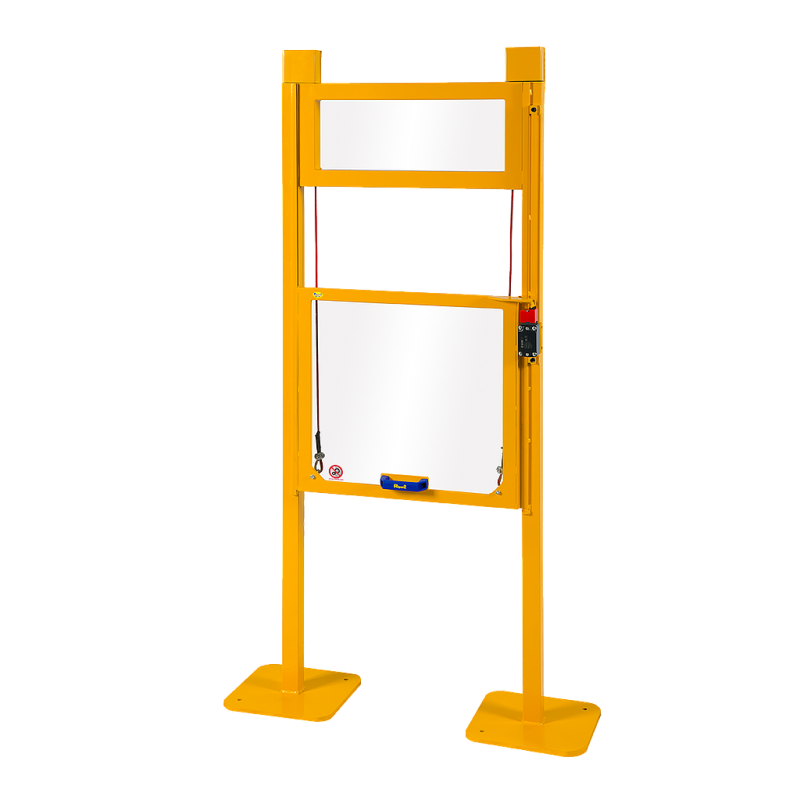

Vertical sliding guard for press with polycarbonate or laminated glass screen and safety micro-switch.
Micro
Screen
1 951,73 € - 2 734,60 €
€2,032.80

Description

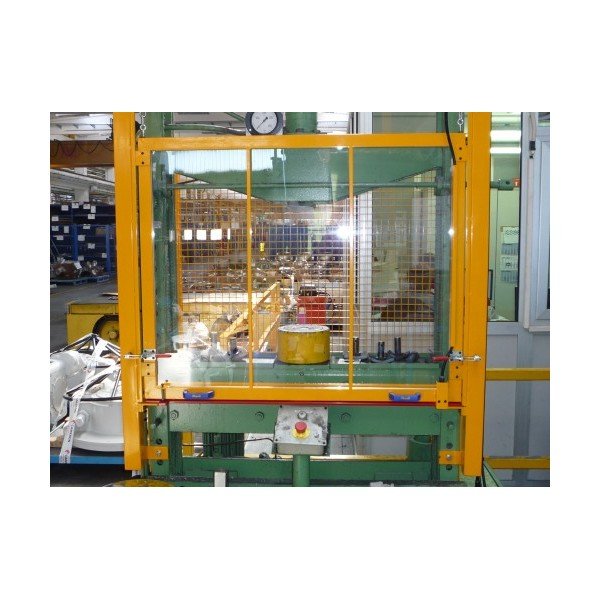

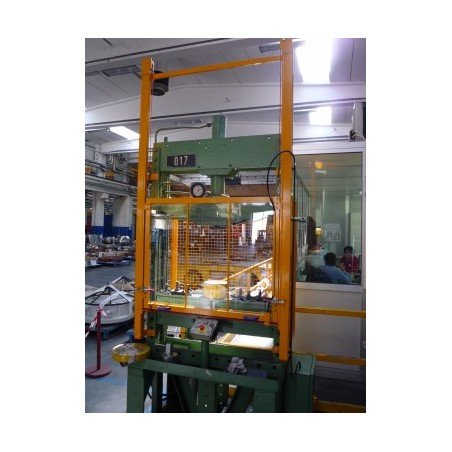

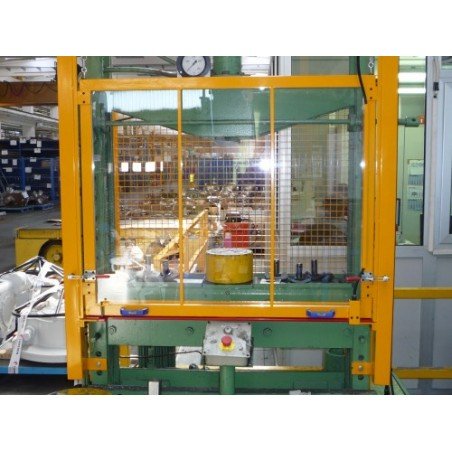

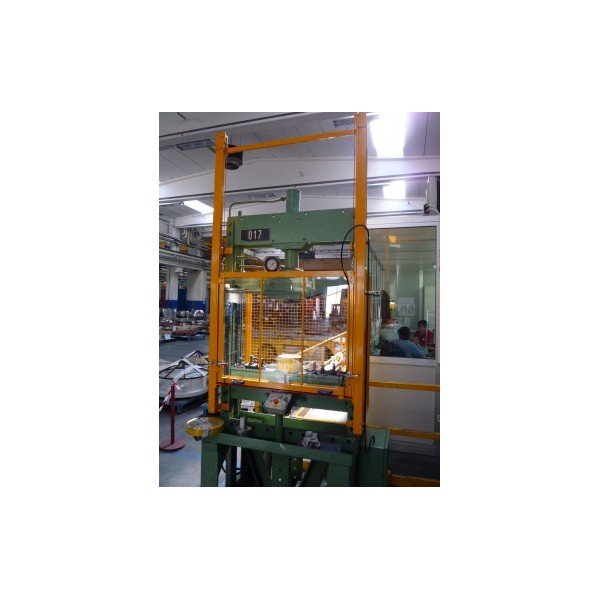

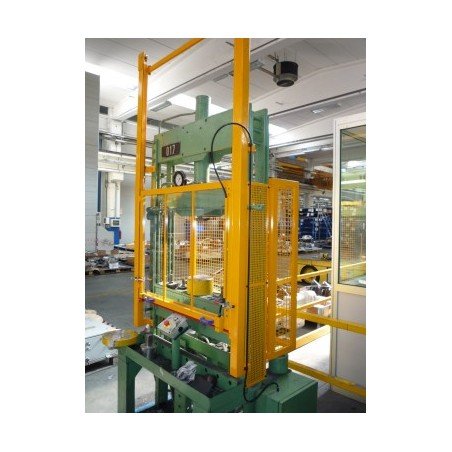

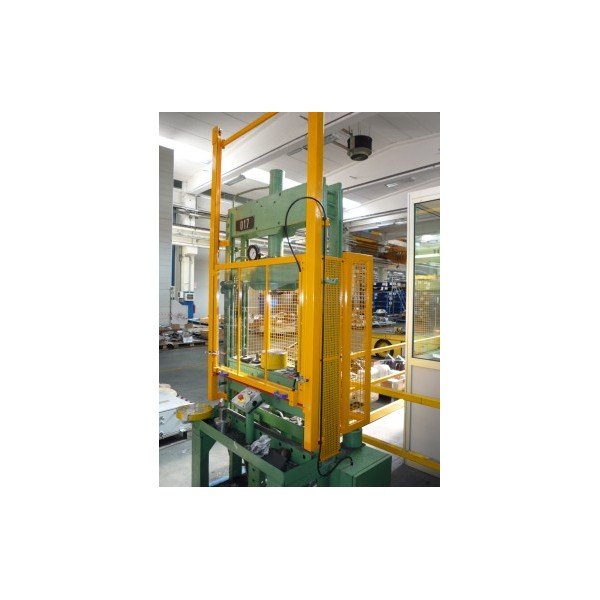

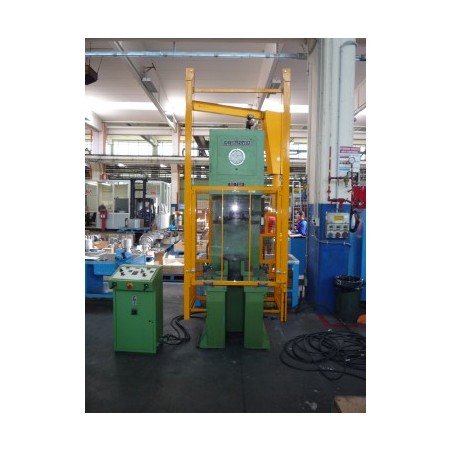

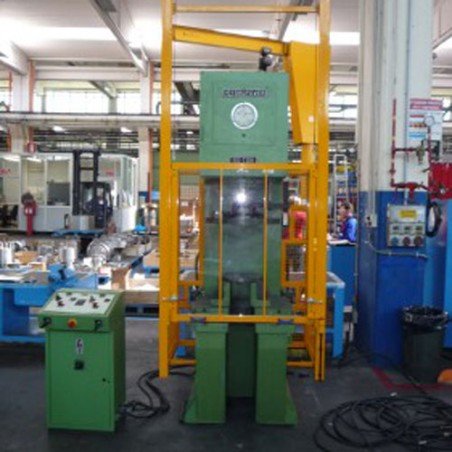

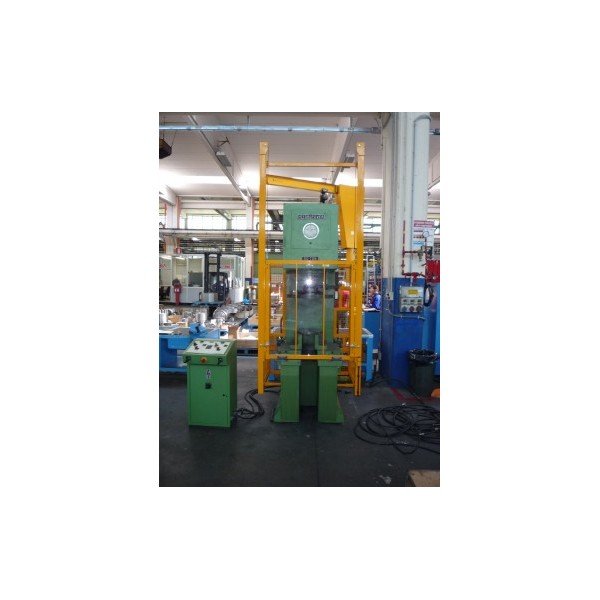

Frontally mounted screen for a hydraulic press with safety switch. The shield consists of a tubular structure with a vertically movable panel. Moving the panel, consisting of a steel frame, filled in with impact-resistant and scratch-free polycarbonate, is facilitated via a counterweight arranged in the tube structure. The side panels, also consisting of a steel frame, filled in with impact-resistant and scratch-free polycarbonate, can be swiveled open and adjusted in height. This allows the machining of larger workpieces. The width of the shields vary from 1000 to. 2000 mm. Consequently there is a choice of 3 models: - FVH1: width of 1000mm - FVH2: width from 1001 to. 1600 mm - FVH3: width from 1601 to. 2000 mm This screen protects the operator against the danger of jamming and projected parts. Benefits: - Larger shielding - Better protection against the danger of crushing and jumping parts - Easy displacement vertically due to the counterweight - Side panels adjustable in height and foldable Specifications: - Frontal safety switch - Choice of 3 models (FVH1; FVH2; FVH3) - Device supplied with CE conformity certificate and an installation and usage sheet
