Lathes

Rear safety guard for lathe with steel frame and polycarbonate - type POST

Sku : 1POST

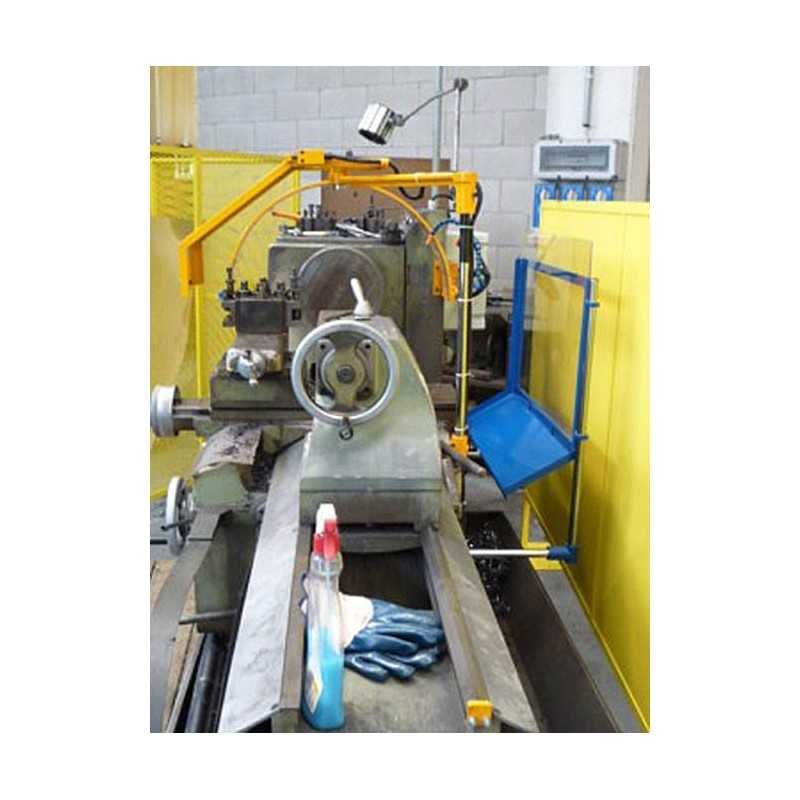

Shielding to be applied to the rear of the lathe, consisting of a steel frame filled with reinforced polycarbonate and mounted on a tubular structure that is adjustable in height.
€702.00

Description

Shielding to be applied to the rear of the lathe, consisting of a steel frame filled with reinforced polycarbonate and mounted on a tubular structure that is adjustable in height. The screen is provided with a sloping surface at the bottom so that the cooling water and the chips end up in the chip tray. This model protects the operator against direct contact with the workpiece, coolant and chips. Benefits: - Transparency screen - Easy removal of the screen to ensure good accessibility at the rear of the machine - Angled drain surface for chips and cooling water - Height-adjustable structure Specifications: - Steel frame - Reinforced polycarbonate screen - Height adjustable tubular structure - Dimension of the shield: 870x650 (H) mm - Device supplied with CE conformity certificate and an installation and usage sheet
