Lathes

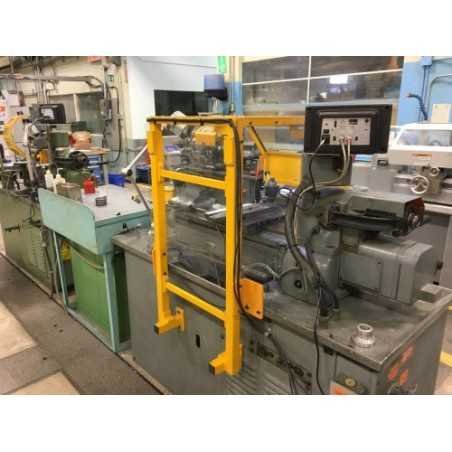

Safety guard for small lathes fixed on pedestal with polycarbonate screen and microswitch - type MINOR FIX

Sku : 1MFIXCM
Protective cover for the chuck of a small lathe consisting of a fixed upward-tilting shield with a gas spring and a safety switch.Screen in polycarbonate or laminated glass. With or without LED lamp.
€3,255.12

Description

Protective cover for the chuck of a small lathe consisting of a fixed upward-tilting shield with a gas spring and a safety switch. The screen consists of a steel frame filled with impact-resistant and scratch-free polycarbonate (MFIXCM) or safety glass (MFIXCMV). The structure to which the shield is attached is mounted at the rear of the machine. The shielding will be supplied with LED lamp (LLS7). This model protects the operator against direct contact with the workpiece, coolant and chips. Benefits: - Easy upward tilting shield - Large field of vision - Improved shielding - Can be placed on small lathes Specifications: - Dimensions of the protective cover: 560x75x1040mm (H). - Maximum extendable: 500 up to 1540 mm - Safety switch - Device supplied with CE conformity certificate and an installation and usage sheet
