Drilling Machines

Safety guard for spindle of drilling machine with or without microswitch - type TR2 DS

Sku : 3TR2CMDS
Protector for drill spindle made with polycarbonate with or without micro-switch - type TR2DS. Standard attachment on the left side and microwitch type 14MIC001.
€361.80

Description

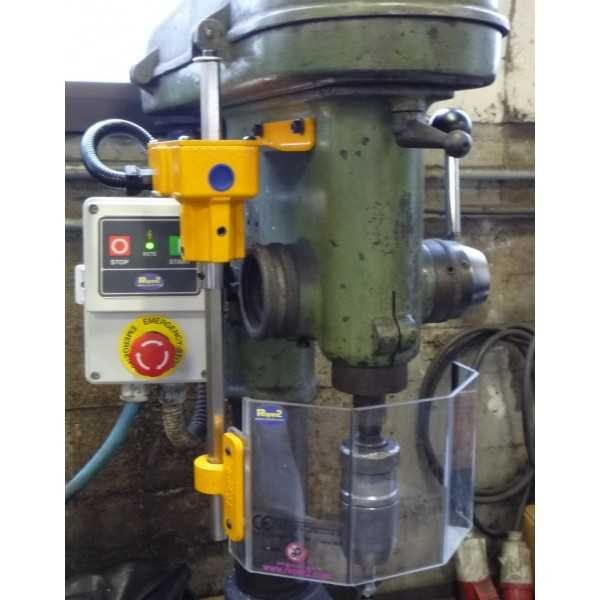

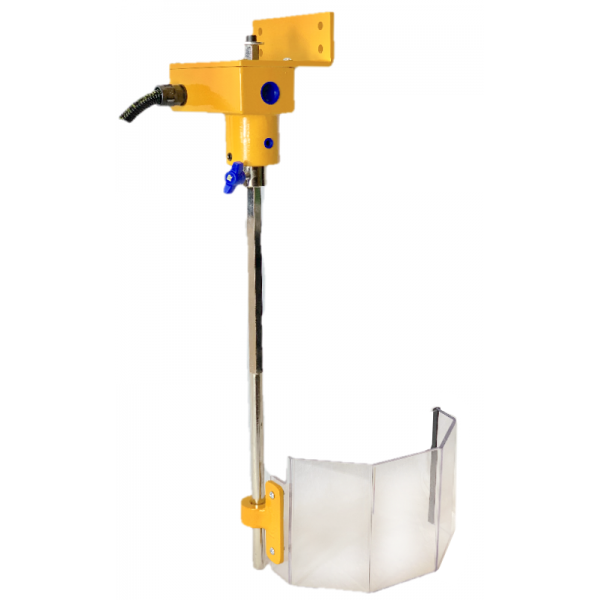

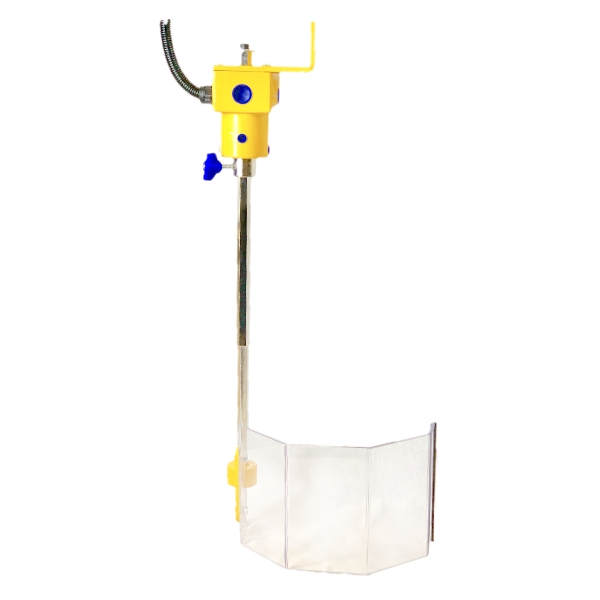

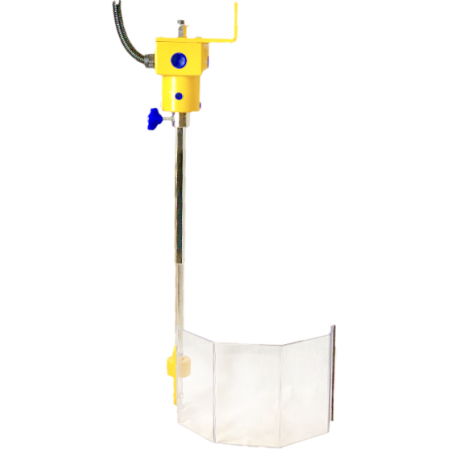

Protective cover for drilling machine consisting of an angular screen in impact-resistant and scratch-free polycarbonate mounted on a support provided with a safety switch. The housing in which the safety switch was installed is smaller in size for mounting on a machine with limited space. The protective cover of 200x120mm is adjustable in height. The machine will stop when the protective cover is opened. This screen protects the operator against the rotating spindle and the cutting tool as well as against chips, cooling water and oil. Benefits: - High visibility on the spindle and the cutting tool - Simple height adjustment Specifications: - angular shield in polycarbonate - Screen 200x120mm - Safety switch - Device supplied with CE conformity certificate and an installation and usage sheet
